2020: A Year in Space

It’s difficult to mention the year 2020 without referencing COVID-19, but as more human beings than ever before were wishing they could take a break from the surface of the planet, space research continued to push our knowledge of the stars. Whilst much of the scientific community was consumed with combating a pandemic, physicists, astronomers, cosmologists, and other researchers were further pushing our understanding of space and the objects which dwell there.

These are some of my personal favourite space-related breakthroughs and research that have come about this year. The list is by no means exhaustive.

Black Holes go silent

In terms of black hole science, 2019 was always going to be a difficult year to top being the year that brought us the first direct image of a supermassive black hole (SMBH). That doesn’t mean that 2020 has been a slow year for black hole developments, however.

One of the most striking and memorable examples of black hole research announced this year was the discovery of a ‘silent’ black hole in our cosmic ‘back yard.’ An international team led by researchers from European Southern Observatory (ESO) including found the black hole in the system HR 6819, located within the Milky Way and just 1,000 light-years from the Earth.

A silent and thus invisible black hole discovered lurking in our ‘solar backyard’ could be an indicator of a much larger population. (ESO/L. Calçada) Background: This wide-field view shows the region of the sky, in the constellation of Telescopium, where HR 6819 can be found. (ESO/Digitized Sky Survey 2. Acknowledgement: Davide De Martin)

The observation marks the closest to Earth a black hole has ever been discovered and Dietrich Baade, Emeritus Astronomer at ESO in Garching believes that it is just ‘the tip of the Iceberg’.

“It’s remarkable because not only is it the first of its kind found, but it’s also so nearby,” said Baade. “Discovering a first only an astronomical stone’s throw away is the biggest surprise one can probably imagine.”

The black hole was described as ‘silent’ by the team because it is not current accreting material — the destructive process that creates powerful x-ray emissions and makes these light-trapping objects observable.

Close-up screen capture image of the LB-1 which, like HR 6819, could also host a silent black hole (Hubble/Public Domain)

“If there is one, there ‘must’ be more,” Baade remarked in May. “If the Earth is not in a privileged position in the Universe — and all available evidence suggests without a doubt it is not — this means that there must be many more silent black holes.”

Baade also remarked that as current cosmological models suggest that the number of stellar-mass black holes is between 100,000,000 to 1,000,000,000 and we have observed nowhere near this many objects, more quiet black holes are “badly needed” to confirm current models. “HR 6819 is the tip of an iceberg, we do not yet know how big the iceberg is.”

Silent black holes weren’t the only examples of this hind of science making noise in 2020, however. Long-missing Intermediate Mass Black Holes were discovered. And just like a proverbial bus, you wait decades for one and then two turn up at once.

Intermediate mass black holes found and found again

Missing black holes were the subject of another piece of exciting space science in September 2020, when researchers from the VIRGO/LIGO collaboration discovered the tell-tale signal of an intermediate-mass black hole (IMBH) in gravitational-wave signals. To add to the excitement, the signals originated from the largest black hole merger ever observed.

An artistic interpretation of the binary black hole merger responsible for GW190521. The space-time, figured by a fabric on which a view of the cosmos is printed, is distorted by the GW190521 signal. The turquoise and orange mini-grids represent the dragging effects due to the individually rotating black holes. The estimated spin axes, or self-rotations, of the black holes, are indicated with the corresponding coloured arrows. The background suggests a star cluster, one of the possible environments where GW190521 could have occurred. Credits: Raúl Rubio / Virgo Valencia Group / The Virgo Collaboration.)

The merger — identified as gravitational wave event GW190521 —was detected in gravitational waves and is the first example of a ‘hierarchical merger’ occurring between two black holes of different sizes, one of which was born from a previous merger.

“This doesn’t look much like a chirp, which is what we typically detect,” Virgo member Nelson Christensen, a researcher at the French National Centre for Scientific Research (CNRS) said when announcing the team’s observation. “This is more like something that goes ‘bang,’ and it’s the most massive signal LIGO and Virgo have seen.”

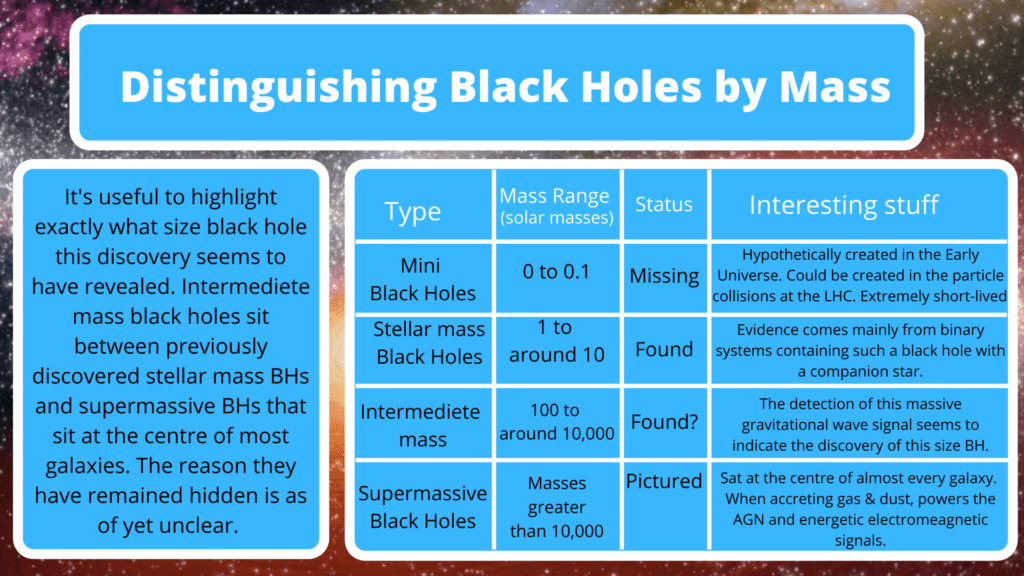

The black hole birthed in the detected merger appears to have a mass of between 100–1000 times that of the Sun — most likely 142 solar masses — putting it in the mass range of an IMBH — a ‘missing link’ between stellar-mass black holes and much larger SMBHs.

Earlier in 2020, another team had used the Hubble Space Telescope X-ray data collected in 2018 to identify what they believed to be an IMBH with a mass 50,000 times that of the Sun named 3XMM J215022.4−055108 (or J2150−0551 for short).

This Hubble Space Telescope image identified the location of an intermediate-mass black hole (IMBH), weighing over 50 000 times the mass of our Sun (NASA, ESA, and D. Lin (University of New Hampshire))

Whether GW190521 or J2150−0551 will go down in history as the first discovered IMBH is currently a little muddy, but what is less questionable is that 2020 will go down as the year in which these ‘missing link’ black holes were first discovered, bringing with them exciting implications for the future investigation of black holes of all sizes.

“Studying the origin and evolution of the intermediate-mass black holes will finally give an answer as to how the supermassive black holes that we find in the centres of massive galaxies came to exist,” said Natalie Webb of the Université de Toulouse in France, part of the team that found J2150−0551. And IMBHs weren’t the only missing element of the Universe that turned up in 2020.

Discovering the Universe’s missing mass

In May astronomers, including Professor J. Xavier Prochaska of UC Santa Cruz, announced that they had found the missing half of missing baryonic matter demanded by cosmological models.

“The matter in this study is ‘ordinary’ matter — the material that makes up our bodies, the Earth, and the entirety of the periodic table. We refer to this matter as ‘baryonic’–matter made up of baryons like electron and protons,” Prochaska said when he spoke exclusively to ZME Science earlier this year. “Of particular interest to astronomers is to ascertain the fraction of the material that is tightly bound to galaxies versus the fraction that is out in the open Universe — what we refer to as the intergalactic medium or cosmic web.”

The matter the team discovered isn’t ‘dark matter’ — which accounts for roughly 85–90% of the Universe’s matter content — but rather ‘ordinary’ matter that has been predicted to exist by our models of universal evolution but has remained hidden.

The team made the discovery using mysterious Fast Radio Bursts (FRBs) and the measurement of the redshift of the galaxy from which they originate as a detection method. FRBs can be used as a probe for baryonic matter because as they travel across the Universe, every atom they encounter slows them down by a tiny amount.

This means that they carry with them a trace of these encounters along with them in the spectral splitting as seen above. This allowed the team to infer the presence of clouds of ionised gas that are invisible to ‘ordinary’ astronomy because of how diffuse they are.

Asteroid Samples Returned by Hayabusa2

Japan’s Hayabusa2 probe and its continued investigation of the asteroid Ryugu has been the gift that has just kept giving in 2020. Just this month the probe returned to Earth samples collected from an asteroid — which has an orbit that brings it between Earth and Mars — for the first time.

Though probes have landed on asteroids and collected samples before, these samples have been examined in situ. Thus this is the first time researchers have been able to get ‘up close and personal’ with matter from an asteroid.

Artist’s impression of the Hayabusa2 probe achieving touchdown on Ryugu. Image credit: JAXA

Hayabusa2 arrived at Ryugu in late June 2018, making its touch-down on the surface of the asteroid in February of the following year after months careful manoeuvring conducted by the Japan Aerospace Exploration Agency (JAXA) and the selection of an optimal region from which to collect samples.

Ahead of the return of samples on December 5th, the probe sent back some stunning images of the asteroid’s surface. These images were more than purely aesthetic, however. Examination of dust grains on the surface of Ryugu gave the team, including Tomokatsu Morota, Nagoya University, Japan, indications of a period of rapid heating by the Sun.

The surface of near-Earth carbonaceous asteroid 162173 Ryugu, as observed by the Hayabusa2 spacecraft just before its landing. This image was produced from images obtained by ONC-W1 at the bottom and ONC-W2 on the side of the spacecraft. The spacecraft’s solar ray paddle casts a shadow on Ryugu’s surface. Image credit: JAXA/U. Tokyo/Kochi U./Rikkyo U./Nagoya U./Chiba Inst. Tech./Meiji U./U. Aizu/AIST

“Our results suggest that Ryugu underwent an orbital excursion near the
Sun,” said Morota in May. “This constrains the orbital transition processes of asteroids from the main belt to near-Earth orbit.”

Impressive though this achievement is, its the collection of samples from the asteroid and their subsequent safe return to earth that is the ‘main course’ of the Hayabusa2 mission. “The most important objective of the touchdown is sample collection from Ryugu’s surface,” Morota explained.

Animation created from CAM-H and ONC-W1 data obtained during the 1st touchdown operation (Feb. 21, 2019). Image credit: JAXA/U. Tokyo/Kochi U./Rikkyo U./Nagoya U./Chiba Inst. Tech./Meiji U./U. Aizu/AIST

It is hoped that access to these samples will help answer lingering questions about asteroid composition as well as assisting researchers to confirm Ryugu’s suspected age of 100 million years old — which actually makes it quite young in terms of other asteroids.

Asteroids like Ryugu can act as a ‘snapshot’ of the system’s in which they form at the time of that formation. This is because whereas planets undergo a lot of interaction with other bodies, asteroids remain pretty much untouched.

Whilst researchers will no doubt be elated by the return of the Ryugu samples and the continuing success of the Hayabusa2 mission, 2020 wasn’t all good news for fans of asteroid research.

Goodbye to Arecibo

The iconic radio telescope at the Arecibo Observatory in Puerto Rico collapsed at the beginning of December, ahead of its planned demolition. The telescope which will be familiar to moviegoers as the setting of the climactic battle in Pierce Brosnan’s first outing as James Bond, 1995’s Goldeneye, had been in operation up until November, playing a role in the detection of near-Earth asteroids and monitoring if they present a threat to the planet.

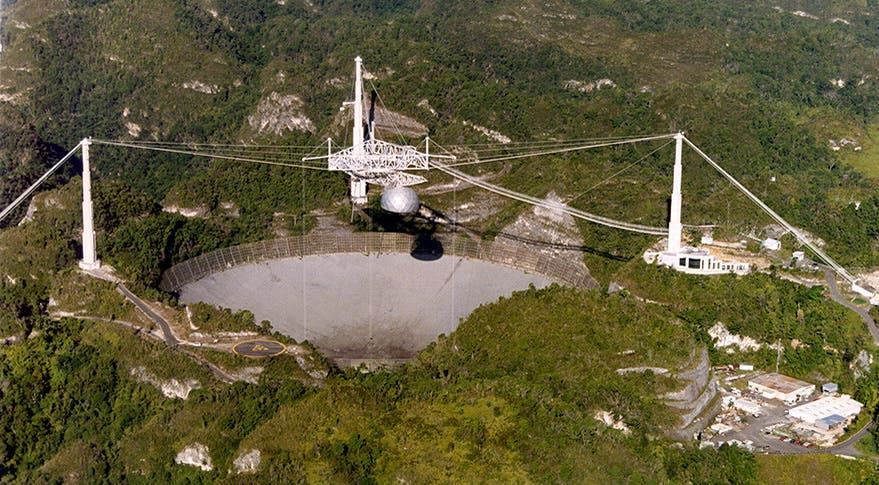

An image of the radio telescope before its December 1st collapse (NSF)

The collapse of the radio telescope’s 900-tonne platform which was suspended above the telescope’s 305-metre-wide dish, on December 1st, followed the snapping of one of its main cables in November.

The US National Science Foundation (NSF), which operates the observatory had announced that same month that the telescope would be permanently closed citing ‘safety concerns’ after warnings from engineers that it could collapse at any point.

Following the collapse, the NSF release heart-wrenching footage of the radio telescope collapsing recorded by drones. The footage shows cables snapping at the top of one of the three towers from which the instrument platform was suspended. The platform then plummets downward impacting the side of the dish.

Video shows the radio telescope’s instrument platform fall and collision into the side of the dish (NSF)

The observatory had played a role in several major space-science breakthroughs since its construction in 1963. Most notably, observations made by the instrument formed the basis of Russell A. Hulse and Joseph H. Talyor’s discovery of a new type of pulsar in 1974. The breakthrough would earn the duo the 1993 Nobel Prize in Physics.

Some good could ultimately come out of the collapse of Arecibo. Questions had been asked about the maintenance of the radio telescope for some time and the fact that the cable which snapped in November dated back to the instrument’s construction 57 years ago has not escaped notice and comment.

As a result, various space agencies are being encouraged to make efforts to better maintain large-scale equipment and facilities so that losses like this can be avoided in the future.

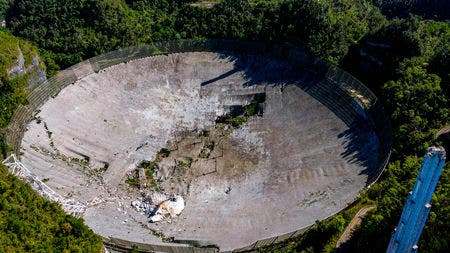

This aerial view shows the damage at the Arecibo Observatory after one of the main cables holding the receiver broke in Arecibo, Puerto Rico, on December 1, 2020. – The radio telescope in Puerto Rico, which once starred in a James Bond film, collapsed Tuesday when its 900-ton receiver platform fell 450 feet (140 meters) and smashed onto the radio dish below. (Photo by Ricardo ARDUENGO / AFP) (Photo by RICARDO ARDUENGO/AFP via Getty Images)

For most of us, 2020 is going to be a year that we would rather forget. Whilst very few of us come honestly comment that we have had anything approaching a ‘good year’ space science has plowed ahead, albeit mildly hindered by the global pandemic.

Our knowledge and understanding of space science are better off at the end of 2020 than it was twelve months earlier, and that is at least something positive that has emerged from this painful year.

Credit: JAXA.

Japanese spacecraft takes historic selfie after landing on distant asteroid

Credit: JAXA.

Credit: JAXA.

This week, Japan made space history after one of its spacecraft landed on the surface of the asteroid Ryugu. The small spacecraft collected some dust samples, and then quickly ejected off the asteroid, remaining in its orbit. The whole mission took less than a minute, but in the aftermath, the Hayabusa2 spacecraft had time to take an unusual selfie.

In September 2018, Hayabusa2 launched two rovers to the surface of Ryugu. The one-kilogram rovers are equipped with wide-angle and stereo cameras — which beamed back the first photos from the asteroid’s surface — and are powered by internal rotors, which propel the robots across the asteroid. On February 22, the spacecraft itself landed on the asteroid, where it quickly fired a tantalum bullet at a 300 meters per second into the surface. The procedure was meant to kick up dust into Hayabusa2’s collecting tray.

The spacecraft then jumped off the one-kilometer-wide asteroid surface, but in doing so it also captured a photo of its shadow. In the image, which was just recently released by the Japanese space agency (JAXA), you can even see dark marks on the surface, showing where the spacecraft initially landed about 3.2 billion kilometers from Earth. At the moment the photo was taken, the probe was about 25 meters (82 feet) above the sample site

“The color of the region beneath the spacecraft’s shadow differs from the surroundings and has been discolored by the touchdown,” a JAXA spokesperson said in a press release. “At the moment, the reason for the discoloration is unknown but it may be due to the grit that was blown upwards by the spacecraft thrusters or bullet (projectile).”

The purple circle shows the landing site of Hayabusa 2, while the white dot is a bright marker placed on the surface of the asteroid to help guide the spacecraft. Credit: JAXA.

JAXA also released an image featuring the landing site prior to touchdown. While it’s not clear what caused the discoloration, this image clearly shows no odd features, which can only mean that the probe’s activities are responsible for dark spots.

The target area (in purple) prior to the sample extraction. Credit: JAXA.

The target area (in purple) prior to the sample extraction. Credit: JAXA.

Anyway, Hayabusa2’s work is far from finished. By June, the probe will make another landing on the asteroid — and this time it will try to extract subsurface material by dropping a small explosive device. In December, another similar mission will take place. Finally, in 2020, Hayabusa2 will embark on its long journey back to Earth to return the hard-earned samples it collected over the course of its lifetime. The samples will help scientists answer fundamental questions about the formation of the solar system. They might also inform the space mining industry with regard to the economic potential for similar asteroids.

History in the making: Japan lands two rovers on asteroid

After days of gripping suspense, the two small rovers finally landed on the Ryugu asteroid — and they’ve even sent a few postcards back home.

This photo shows the view from asteroid Ryugu from the Minerva-II1A. The probe is one of two that landed on Ryugu from the Japanese Aerospace Exploration Agency’s Hayabusa2 spacecraft. It’s the first time two mobile rovers landed on an asteroid. The image is blurred because it was taken during the rover’s descent. Credit: Japan Aerospace Exploration Agency.

The rovers are part of Japan Aerospace Exploration Agency’s Hayabusa2 asteroid sample-return mission. They were deployed from the spacecraft and successfully landed on Ryugu, and both are still in good condition.

In order to perform the deployment, the Hayabusa2 carefully lowered itself carefully down toward the surface, until it was only 55 meters (180 ft) above. Then, after the rovers were deployed, the shuttle went back up to 20 km (12.5 mi) above the asteroid.

Because Ryugu is so small and doesn’t have a significant gravitational field, the landing was particularly difficult, but this also allows the rovers to hop around the asteroid, taking photos as they go.

The 1kg rovers are equipped with wide-angle and stereo cameras, and are powered internal rotors, which propel the robots across the asteroid. The rovers also feature sensors that measure the surface temperatures, and Hayabusa2 itself carries sensors for remote sensing and sampling.

[panel style=”panel-default” title=”Underwater palace.” footer=””]Ryugu is an asteroid which measures approximately 1 kilometer (0.6 mi) in diameter. Ryugu was discovered in 1999, and its name refers to Ryūgū (Dragon Palace), a magical underwater palace in a Japanese folktale. In the story, a fisherman Urashima Tarō travels to the palace on the back of a turtle, and when he returns, he carries with him a mysterious box — something which is alluding to Hayabusa2 returning with samples[/panel]

Animation of Hayabusa2 orbit from 3 December 2014 to 29 December 2019.

But while this is already a remarkable achievement, the mission is still far from being over: the Japanese space agency still has two more deployments to complete — a larger rover called MASCOT in October and another tiny hopper next year. Then, the rovers have to collect samples, and board the shuttle again, returning to Earth for lab analysis. If everything goes according to plan, the shuttle will leave Ryugu in 2019 and will return back to Earth in 2020.

So far, the asteroid’s surface was rougher than expected, which brought another layer of difficulty to the mission. The surface is blackish-colored, and the asteroid has maintained its original composition for eons, as Ryugu is a particularly primitive asteroid type. Studying it could shed light on the origin and evolution of Earth and even the solar system. For now, we eagerly await the next mission checkpoints.
